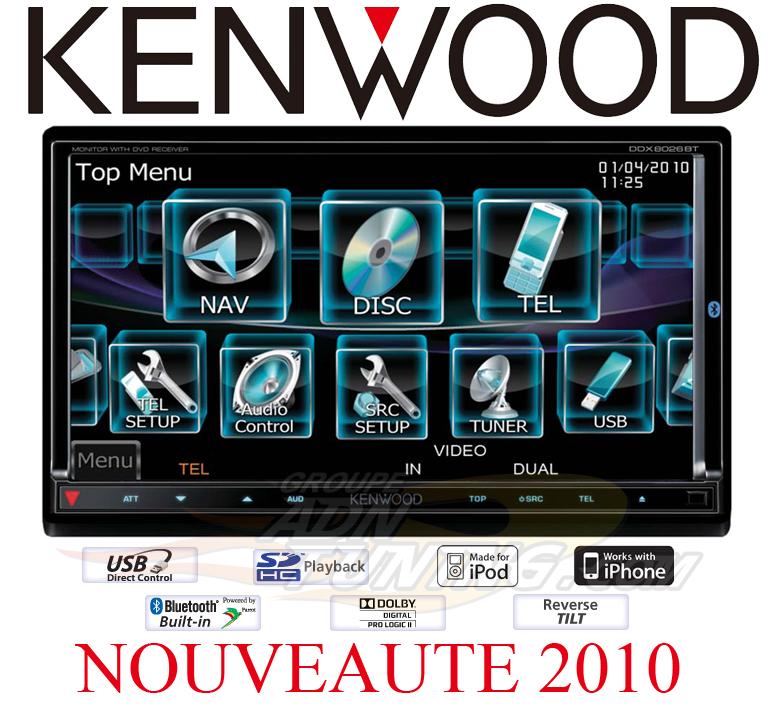

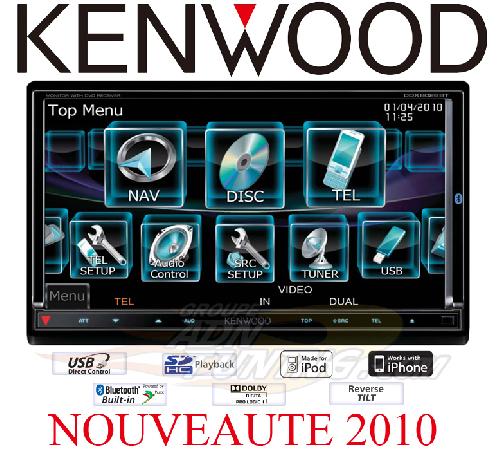

DDX8026BT - Autoradio 2Din DVD/DIVX/WMA/MP3/AAC - SD/USB/iPhone - Bluetooth - Ecran Tactile 7p

Le DDX8026BT de Kenwood est la nouveauté 2010 qui remplace le DDX8024BT ! Cet autoradio double DIN haut de gamme flexible vous offrira un son épuré. Equipé du Bluetooth Parrot, il vous offre sécurité et plaisir de conduite grâce à de nombreuses sources de lecture possibles. Vous pouvez même le transformer en autoradio avec GPS via le KNA-G620T, pour en faire un autoradio complet !

Le DDX8026BT est doté de la technologie Reverse Tilt de Kenwood, ce qui vous permet d'ajuster l'écran plus ou moins verticalement afin d'éviter au maximum les reflets du soleil sur celui-ci. De plus, sa façade amovible vous permet de toujours la garder avec vous, réduisant ainsi les risques de vol.

Points Forts

• Ecran 7 pouces VGA TFT
• Façade amovible
• iPod, iPhone USB direct control (via le KCA-iP301V en option)
• 5.1 DSP, 5.1ch preout
• Bluetooth (handsfree profile/audio profile/SMS)
• Advanced Voice control
• SD card slot pour audio & video
• Touch sensor keys
• 3D Graphical User Interface
• Advanced Navigation Terminal

Caractéristiques générales

• Taille DIN : 2 DIN
• Façade amovible
• Protection Case For Faceplate
• Disabled System Indicator (DSI)
• Security Code Function ( user set)
• On Screen Display (OSD) Operation
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination : Variable color
• Touch sensor
• Back-up Memory
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• IR Remote Control included (RC-DV331)
• Digital Clock (24H)
• ISO connector
• Bluetooth unit built-in
• Système de navigation en option via le KNA-G620T
• Made for iPod
• Advanced Speech Recognition
• Firmware upgradable

Caractéristiques Ecran

• Screen Type : TFT 7,0" Wide
• Display Mode : 4 Mode (Full/Just/Zoom/Normal)
• High Resolution VGA Display
• Picture quality revision by Mstar : 3 steps
• Screen Adjustments : Brightness/Tint/Color/Contrast/Black Level/Dimmer
• Dimmer function : ON/OFF/Sync/Navi-Sync
• Visual Source Mode : DVD/Video/Navigation/(TV)/USB/iPod
• Ecran Tactile
• Mechanism type : Auto Slide & Reverse
• Mechanism Slide Adjustment : Reverse tilt + 5 steps angle adjust
• Mechanism Angle Adjustment : none (fixed faceplate)
• Reverse Tilt
• NTSC/PAL judge : Auto

Multimedia GUI Features

• OSDC Type : Full Graphics
• Colour Pallet : 29790
• Variable Colour illumination
• GUI colour coordinate
• GUI animation : 3D
• Menu text in selectable language
• American English
• Arabic
• British English
• Chinese
• Dutch
• French
• German
• Greek
• Hebrew
• Italian
• Persian
• Portuguese
• Russian
• Spanish
• Thai
• Turkish
• Background Customize
• Skin Change : 3D, Fire & Metal
• Picture in picture : Only in navigation screen

Tuner Features

• RDS (PI, PS, AF, TI, Clock)
• Radio Text Plus
• Program Type Function (PTY)
• Enhanced Other Networks Function (EON)
• K3I - Clean Reception Tuner
• FM Reception
• AM (MW/LW) Reception
• Presets 24 Presets (18FM / 3LW / 3MW)
• Station Select List
• Automatic Memory Entry (AME)
• Up/Down Seek Tuning
• Tuning mode (Auto1 / Auto2 / Manual)
• FM Stereo / Mono Selector

DVD-Features

• Mechanism : DVS-8500
• Disc Capacity : 1 Disc(s)
• DVD-R/RW Compatible
• DVD Region Code 2
• VCD Compatible
• CD-R/RW Compatible
• CD Text
• MP3
• ID3 Tag
• WMA
• WMA Tag
• AAC
• AAC Tag Yes
• Digital/Analog Converter : 24 bit
• MPEG1/2 Video File (.mpg) Compatible
• MPEG4 compatible
• DivX (Certified)
• CD-DA Repeat/Scan/Random play
• Direct Search
• Time Code Display
• Resume Play
• Zoom Control (DVD/VCD)
• Disc Menu Direct Touch

USB Features

• USB terminal
• USB Type : USB1.1 / USB 2.0
• MP3 playback with ID3 Tag Display
• WMA (Windows Media File) playback
• AAC (Advanced Audio Codec) playback
• WAV (Waveform Audio Format) playback
• MPEG1 Video decoder
• MPEG2 Video Decoder
• MPEG4 Video Decoder
• H.264 Video decoder
• DivX Video Decoder
• JPEG slide show
• JPEG picture control
• Zoom control (movie/photo)
• Repeat/Scan/Random search
• Direct search
• Category search
• Time code display
• Resume play

SD-card Features

• SD card type : SD, SDHC, mini SD, miniSDHC, microSD, microSDHC compatible
• MP3 audio files
• WMA audio files
• AAC audio files
• WAV audio files
• JPG image files
• MPEG1 video files
• MPEG2 video files
• MPEG4 Video files
• H.264 video files
• WMV video files
• Repeat play
• Scan play
• Random play
• Category search
• Direct search
• Time code display
• Resume play
• Zoom control : Movie/photo
• Picture control (JPEG)
• JPG slide show

iPod Features

• USB Video & Audio direct control (3 wire) : with optional cable KCA-iP301V
• Music playback
• Video playback
• Album art support
• Music library search
• Alphabet search : up to the first 3 characters
• Control by hand
• Works with iPhone * : iPhone, 3G & 3GS
• Works with iPod Classic * : 80G & 120G
• Works with iPod Video * : 5th/6th generation
• Works with iPod Nano * : 1st/2nd/3rd/4th/5th Gen
• Works with iPod Touch * : 1st/2nd Gen
• Battery charge + power control

* Always update to latest Apple firmware

Audio features

• Max. Output Power (MOSFET Power IC) : 4 x 50W
• Pre-out 5.1 channel
• Pre-out Output Level : 5V
• Auxiliary Input RCA (rear side)
• Subwoofer Reference Level Adj.
• Dual Zone Source & Volume Control
• Dual Zone (FRONT / REAR Switchable)
• Att.(-20dB) with smooth Volume Return
• Beep On/Off

Multimedia DSP Features

• DSP Chip : Freescale
• Position Control
• Position Preset 3
• Position Cabin Size
• Graphic equalizer
• G-EQ : 13 bands
• G-EQ KBS
• G-EQ manual setting
• G-EQ f0 Qty : 4
• G-EQ adjustable level : +9dB/-9dB
• DRC (Only On Dolby Digital) : 3 (Wide/Normal/Midnight)
• Time Alignment : 0cm ~ 600cm
• High Pass Filter : Center
• HPF Cut Off Frequency : 14
• HPF Cut Slope Level : 4
• Low Pass Filter : Non-Fading
• LPF Cut Off Frequency : 14
• LPF Cut Slope Level : 4
• Cross-over
• Source DSP Memory
• SRS WOW
• WOW 3D
• WOW FOCUS
• WOW TrueBass
• Dolby PrologicII
• Dolby Digital Decode
• dts decode
• Down Mix Control
• Speaker Size Control
• Channel Level Control
• Supreme

Video Features

• Audio/Video Output : 1 RCA
• Audio/Video Input : Mini-jack in front panel, need optional CA-C3AV
• iPod AV input switchable to additional AV input
• Video-In for Rear-view Camera : 1 dedicated video input (RCA)
• Mirror-mode on Rear-view Image
• Detection Mode Rear View Camera Reverse sensor wire
• (Rear) camera display view control
• Picture in picture
• DVD Menu Direct Touch Operation
• Dolby Digital Decoder
• Dolby Pro Logic II decoder
• dts Decoder
• dts Digital surround
• MPEG Decoder
• Linear PCM Decoder
• SRS Circle Surround Automotive Decoder
• TV ready

Connectivity

• OEM Wired Remote Control
• Parking sensor wire
• Reverse sensor wire
• Power Control (P.CON) wire
• External Relay Control
• Multi angle control (Relay SW) : for optional camera CMOS-300
• 2-way (Tel/Navi) mute wire
• Dimmer control wire
• TV Tuner Control
• Advanced navigation RGB terminal
• External microphone input

Bluetooth General Features

• Hands free Profile (HPF)
• Advanced Audio Distribution Profile (A2DP)
• Serial Port Profile (SPP)
• Headset Profile (HSP)
• Phonebook Access Profile (PBAP)
• Phone numbers hold : up to 1000 per registered phone.
• Voice recognition dialing
• Object Push Profile (OPP)
• Synchronization Profile (SYNC)
• Audio/Video Remote Control Profile (AVRCP)
• Short Message Service (SMS)
• Phone device status display
• Audio device status display
• Signal strength display
• Remaining battery display
• Bluetooth phones to register : 5
• High-quality noise canceling microphone : external microphone
• Bluetooth firmware upgradeable

* depends on phone model/make

Tuner Specifications

• FM Frequency Range : 87.5MHz ~ 108MHz
• FM Frequency Step : 50kHz
• FM Usable Sensitivity : 0.7-V/750ohm (S/N 26dB)
• FM Quieting Sensitivity : 1.6-V/75ohm (S/N 46dB)
• FM Frequency Response : 30Hz ~ 15kHz (- 3dB)
• FM Selectivity(DIN) : over 80dB (-400kHz)
• FM Stereo Separation (1kHz) : 35dB
• MW Frequency Range : 531kHz ~ 1611kHz
• MW Frequency step : 9kHz
• MW Usable Sensitivity : 25-V (S/N 20dB)
• LW Frequency Range : 153kHz ~ 281kHz
• LW Usable Sensitivity : 45-V (S/N 20dB)

DVD Specifications

• D/A Converter : 24 bit
• Video decoder : Linear PCM/Dolby Digital/dts/MLP/MP3/WMA/AAC
• Audio decoder : MPEG1/MPEG2/MPEG4(Divx)
• Wow & Flutter : Below Measurable Limit
• Freq. Resp. (96kHz Sampling) : 20Hz ~ 44kHz
• Freq. Resp. (48kHz Sampling) : 20Hz ~ 22kHz
• Freq. Resp. (44,1kHz Sampling) : 20Hz ~ 20kHz
• Total Harmonic Distortion : 0.01% (1kHz)
• Signal to Noise Ratio : 98dB (1kHz)
• Dynamic Range : 98dB
• Disc Format : DVD-Video/Video-CD/CD-DA
• FM Signal to Noise Ratio : 65dB(MONO)
• Sample Frequency : 44.1kHz/48kHz/96kHz
• Quantifying bit number : 16/20/24bit

USB Specifications

• USB Version compatibility : 1.1 / 2.0
• File System : FAT 16/32
• Maximum Supply current : 500mA
• D/A Converter : 24 bit
• MP3 Decode : Compliant with MPEG-1/2 Audio Layer-3
• WMA Decode : Compliant with Windows Media Audio
• AAC Decode : AAC-LC "m4a" Files
• WAV Decode : Linear - PCM Files
• Acceptable video files : MPEG1, MPEG2, MPEG4, H.264, WMV

SD-card specs

• Compatible SD cards : SD, SDHC, mini SD, miniSDHC, microSD, microSDHC
• File system : FAT 16/32
• Maximum capacity : 32 GB
• Data transfer rate : Maximum 12 Mbps
• Video decoder : MPEG1, MPEG2, MPEG4, H.264, WMV
• Audio decoder : PM3, WMA, AAC, WAV (Linear PCM)

Audio Specifications

• Maximum Power : 50W x 4
• Output Power (DIN45324,+B=14.4v) : 30W x 4
• Preout Level : 2000mV / 10kOhm,
• Preout Impedance : - 600Ohm
• Speaker Impedance : 4Ohm ~ 8Ohm
• Bass Tone Control : 100Hz -10dB
• Middle Tone Control : 1kHz -10dB
• Treble Tone Control : 10kHz -10dB

DSP Specifications

• Frequency band : 13 bands
• Frequency band - Front : 62.5Hz ~ 16kHz
• Frequency band - Center : 62.5Hz ~ 16kHz
• Frequency band - Rear : 62.5Hz ~ 16kHz
• Equalizer Gain : -9db ~ +9db
• High Pass Filter frequency : Through/30 ~ 250 (Hz)
• High Pass Filter Slope : -6/-12/-18/-24 dB/Oct
• Low Pass Filter frequency : 30 ~ 250(Hz)/Through
• Low Pass Filter Slope : -6/-12/-18/-24 dB/Oct
• Time aligment - Front : 0 ~ 6.1m (0.02cm step)
• Time aligment - Center : 0 ~ 3.4m (0.02cm step)
• Time aligment - Rear : 0 ~ 6.1m (0.02cm step)
• Time aligment - Sub : 0 ~ 6.1m (0.02cm step)

Video Specifications

• Color System of External Video Input : NTSC/PAL
• External Video Input Level (RCA) : 1Vpp / 75Ohm
• External Audio Max. Input Level (RCA) : 2V / 25kOhm
• Analog RGB Input : 0.7Vpp / 75Ohm
• Video Output Level (RCA) : 1Vpp / 75Ohm
• Audio Output Level (RCA) : 1.2Vpp / 10kOhm

Monitor Specifications

• Screen size (Diagonal) : 6.95 Inches Wide
• Screen Size (WxH) : 156.6 x 81.6mm
• Display system : Transparent TN LCD Panel
• Drive system : TFT Active Matrix System
• Number of Pixels : 1152000pixels (800(H) x 480(V) x RGB)
• Effective pixels : 99.99%
• Pixel arrangement : RGB Striped
• Back lighting : LED (Light Emitting Diode)

Bluetooth specifications

• Technology : bluetooth 2.1 + EDR certified
• Frequency : 2.402 - 2.48 GHz
• Output power : +4dBm(max), 0dBm (AVE) power class 2
• Maximum range : Line of sight approx. 10 meter
• Handsfree profile (HFP)
• Serial port profile (SPP)
• Headset profile (HSP)
• Advanced audio distribution profile (A2DP)
• Audio/Video remote control profile (AVRCP)
• Object push profile (OPP)
• Phonebook access profile (PBAP)
• Synchronization profile (SYNC)

Accessories

• Remote control : RC-DV331
• Release keys : 2 pieces
• Escutcheon
• Installation Sleeve
• Protection Case for Faceplate
• DC cord (Molex to ISO) : 20 cm
• Relay control Cord : 2 wires, 50 cm
• Handsfree Microphone : with 300 cm cable
• Voice control switch : with 300 cm cable

General Specifications

• Operating voltage : 14.4V (10 ~ 16V Allowable)
• Maximum Current Consumption : 15A
• Dimensions (WxHxD) : 182.7 x 100 x 180mm
• Weight : 2610gr
• Operation Temperature Range : -10-C ~ 60-C
• Storage Temperature Range : -20-C ~ 85-C
